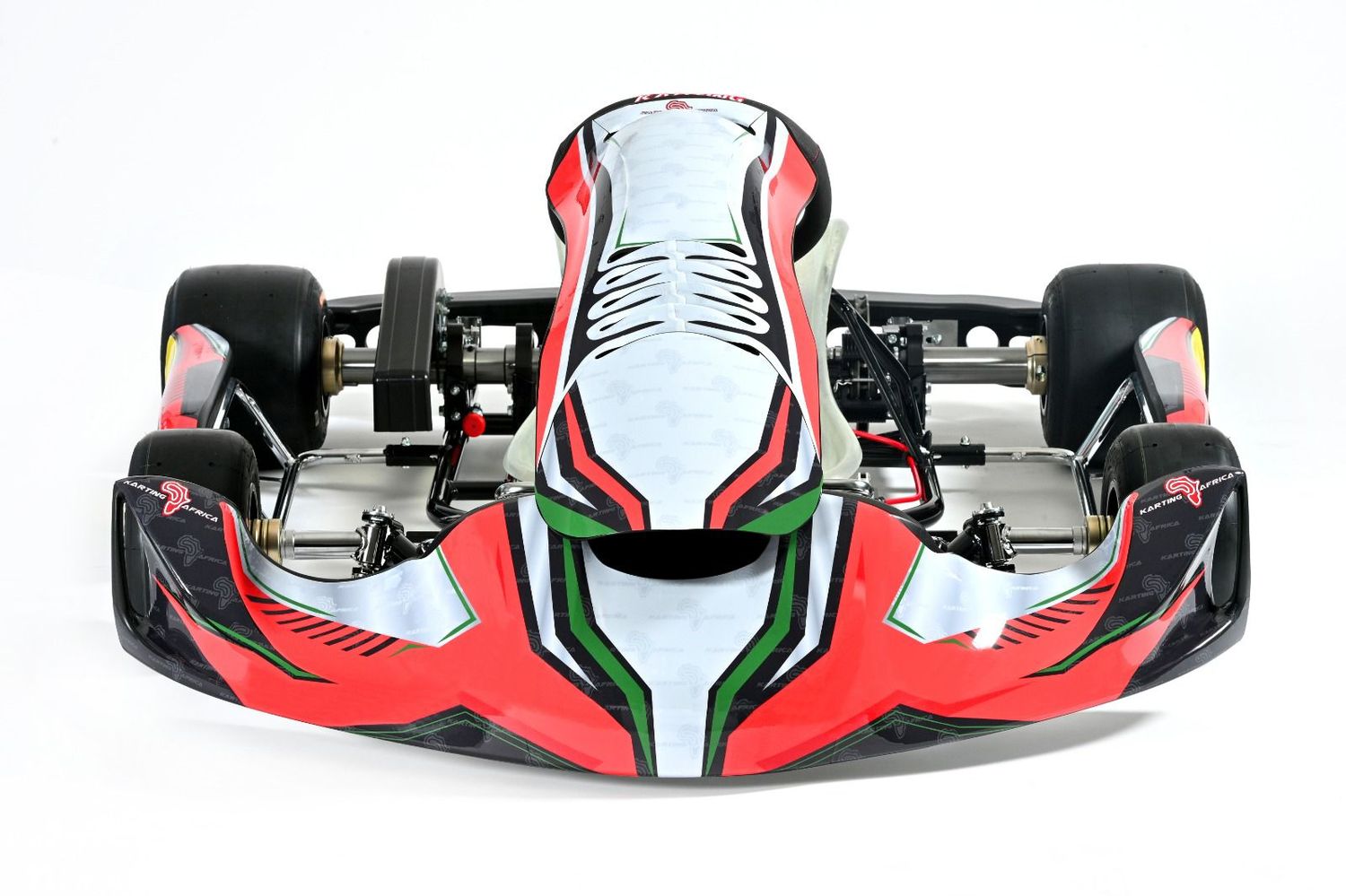

The result of development work implemented by the TBKART Racing Team, the S55M model (available both in single-speed and shifter versions) stands out for its ease of use and adaptability to the most diverse weather conditions. The multiple adjustment options (camber and caster angle, front and rear height), as well as a complete set of accessories (front bars, steering columns, hubs and axles), makes it a kart suitable for a wide variety of categories, with different types of engines and tires. The S55M is more suitable for the single-speed categories (both Senior and Junior) and, thanks to a design developed over many years of testing on racetracks all over the world, it is capable of showing its potential and successes on any type of circuit. This is done by perfecting the operation of setting up the kart, which can also be performed by drivers with a minimal knowledge base and some degree of experience.

Brakes

Guaranteed efficiency along with the highest safety standards. Developed directly by TBKART, the braking system of the S55M is distinguished by high performance, heat dissipation and durability.

• Cast iron floating disc, 187 mm in diameter
• Radial mount monobloc caliper
• Two different brake pad types are available

Manganese Hubs

Aesthetic care, but also maximum attention to weight reduction as far as TBKART accessories are concerned. Evidence of this is seen in the hubs, designed and tested to offer maximum performance.

• Machined from a solid metal block
• Magnesium used in the standard version, as in the rims and the double-screw sprocket retaining system.
• Available sizes: 80, 110 cm (front) / 80, 90, 100, 110, 120 cm (rear)

Adjustable Footrest

Ideal for completing a tailor-made driver’s seat for yourself. The adjustable footrest, in fact, allows plenty of leeway through quick and easy adjustments that allow forward and backward modifications, as well as a 180° rotation to increase its travel.

• 4 anchoring positions attached to the steering column’s lower support structure
• Sliding bracket adjustment system
• Displacement range up to 15 cm
